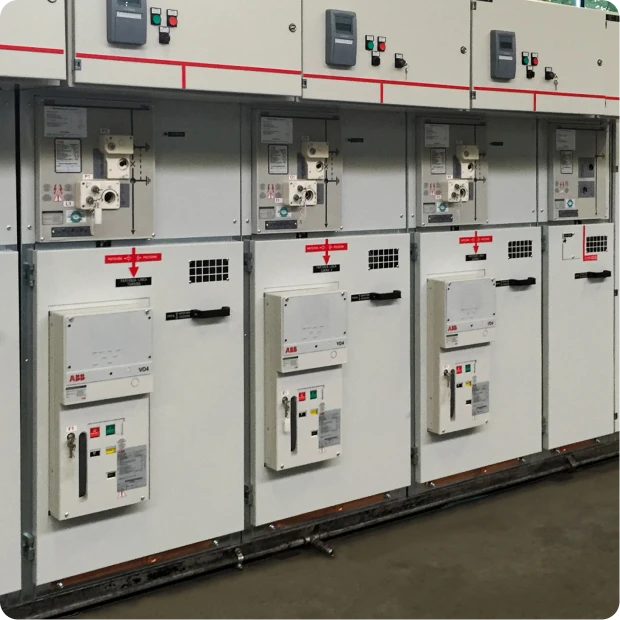

MEDIUM VOLTAGE PANELS
Medium voltage panels of the metal enclosed type are compact modular structures made from high-quality metal sheets with a thickness of no less than 2 mm, painted in RAL 7035 colour with a textured finish.
Medium voltage panels of the metal enclosed type are compact modular structures made from high-quality metal sheets with a thickness of no less than 2 mm, painted in RAL 7035 colour with a textured finish.
The fundamental features of this type of panel are:
- Operator safety
- Modularity of the system, allowing the creation of any installation solution
- Ease of operation, aided by a prominent synoptic diagram across the entire panel
- Use of switch disconnectors and circuit breakers, either vacuum or SF6 insulated, which facilitate operation, require no maintenance of power components, and reduce maintenance of control components
The supply of the panels is always accompanied, both in paper and digital formats, by the following documentation:
- Final Drawing
- Testing Report
- Declaration of conformity to current CEI EN standards
- Technical documentation related to the equipment used
Additionally, test reports on peak withstand, short-duration currents on the protection circuit, and dielectric tests will also be available.

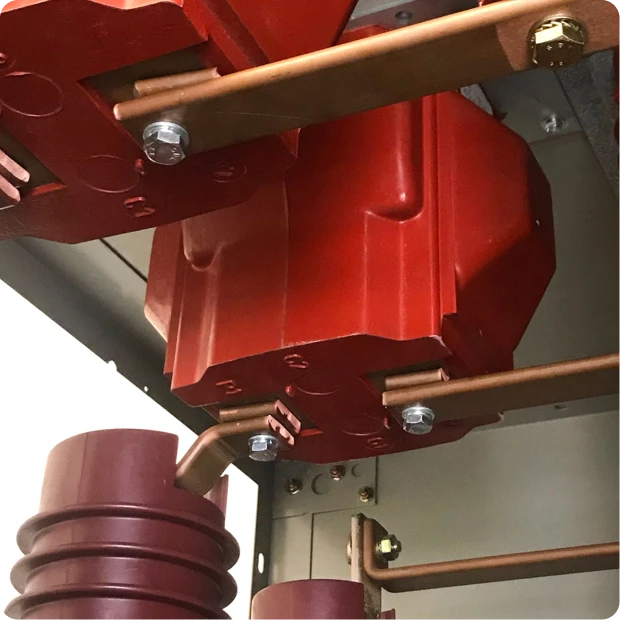

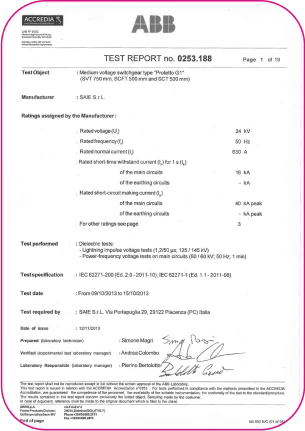

TEST REPORTS

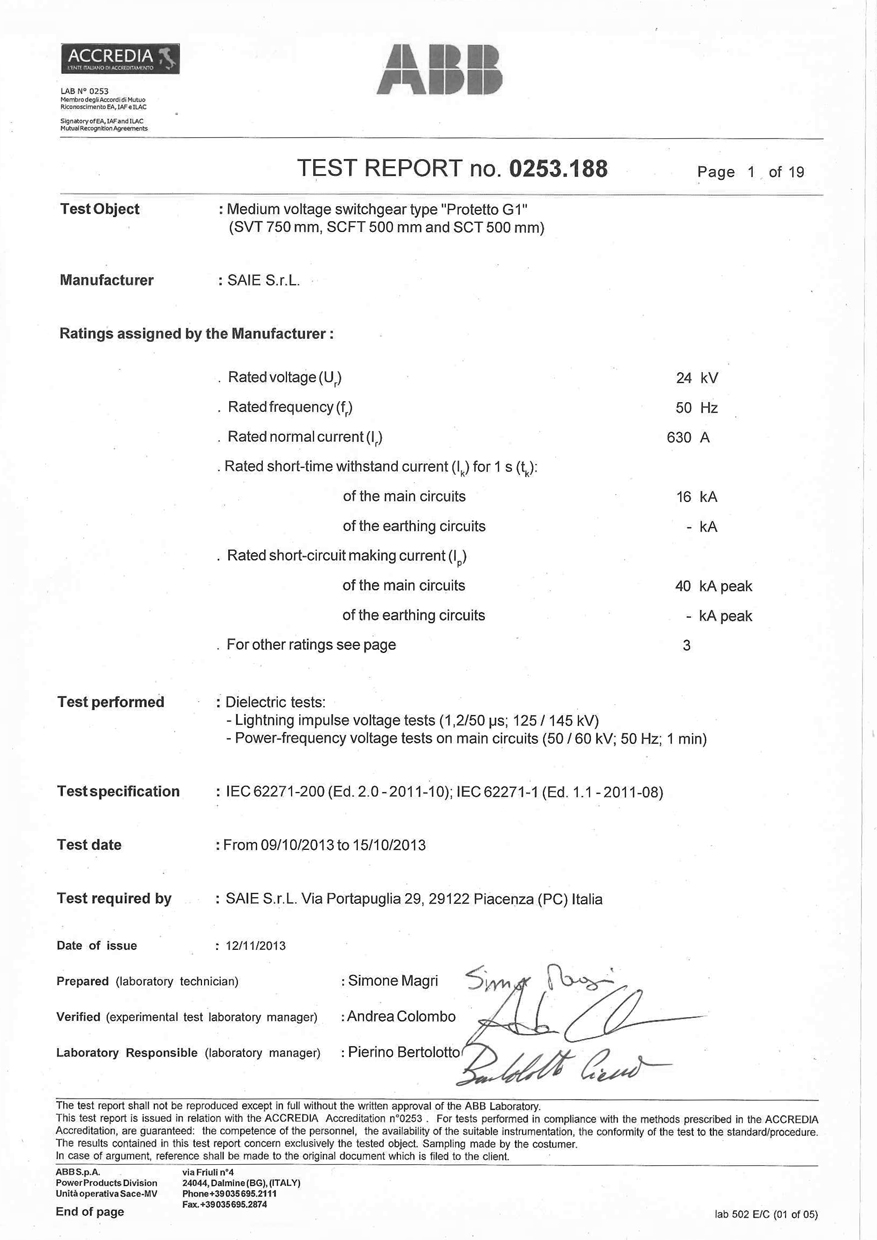

Dielectric Tests

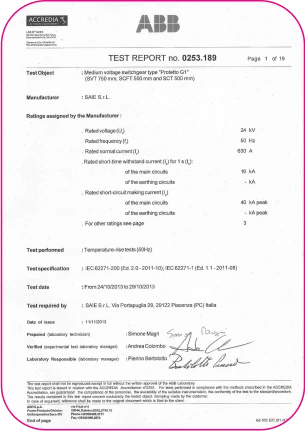

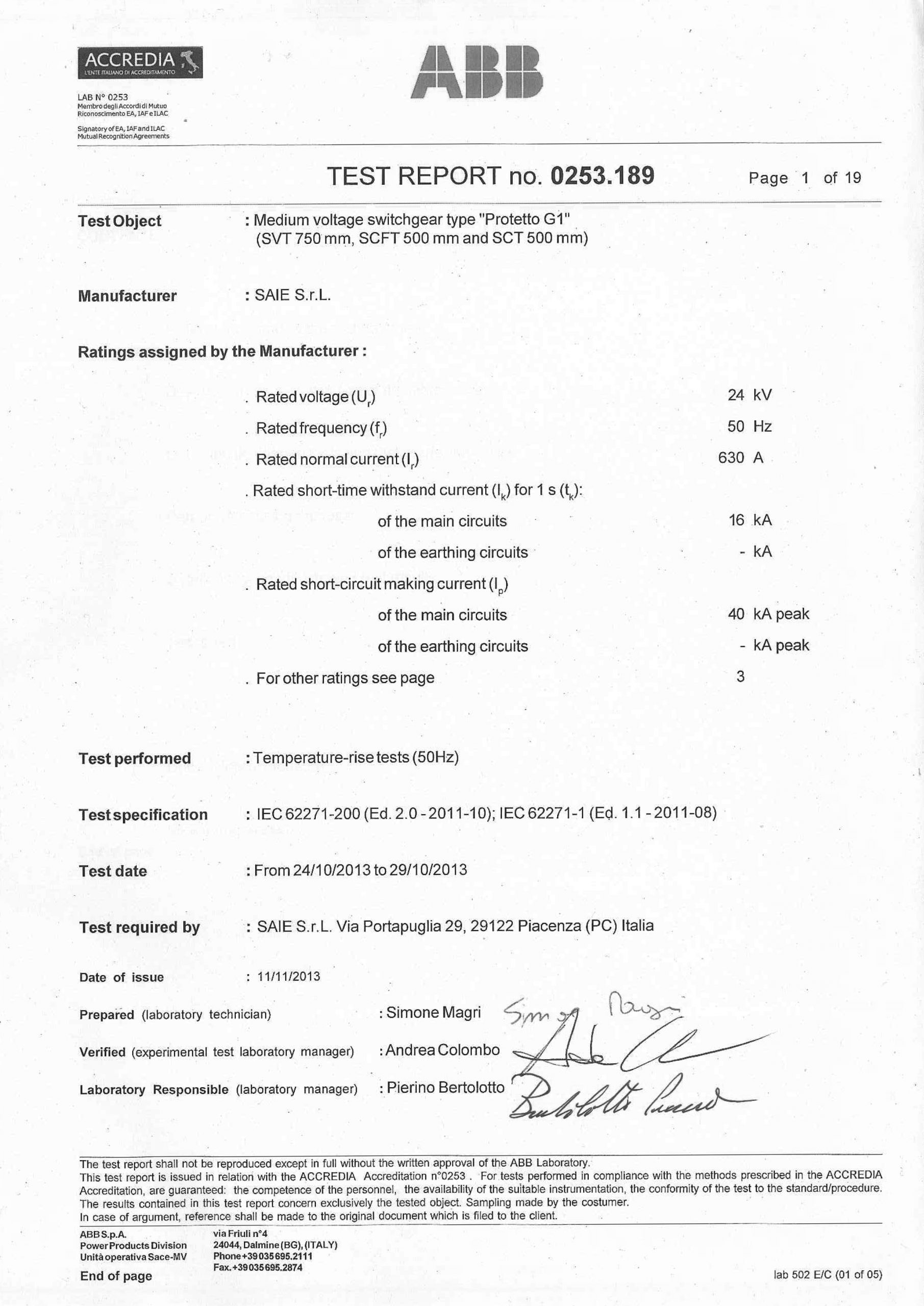

Temperature Rise Tests

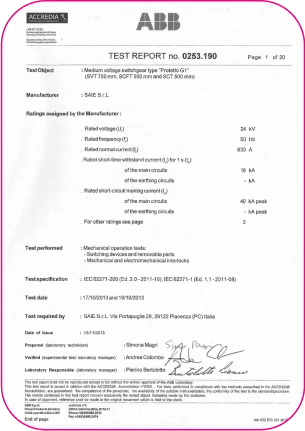

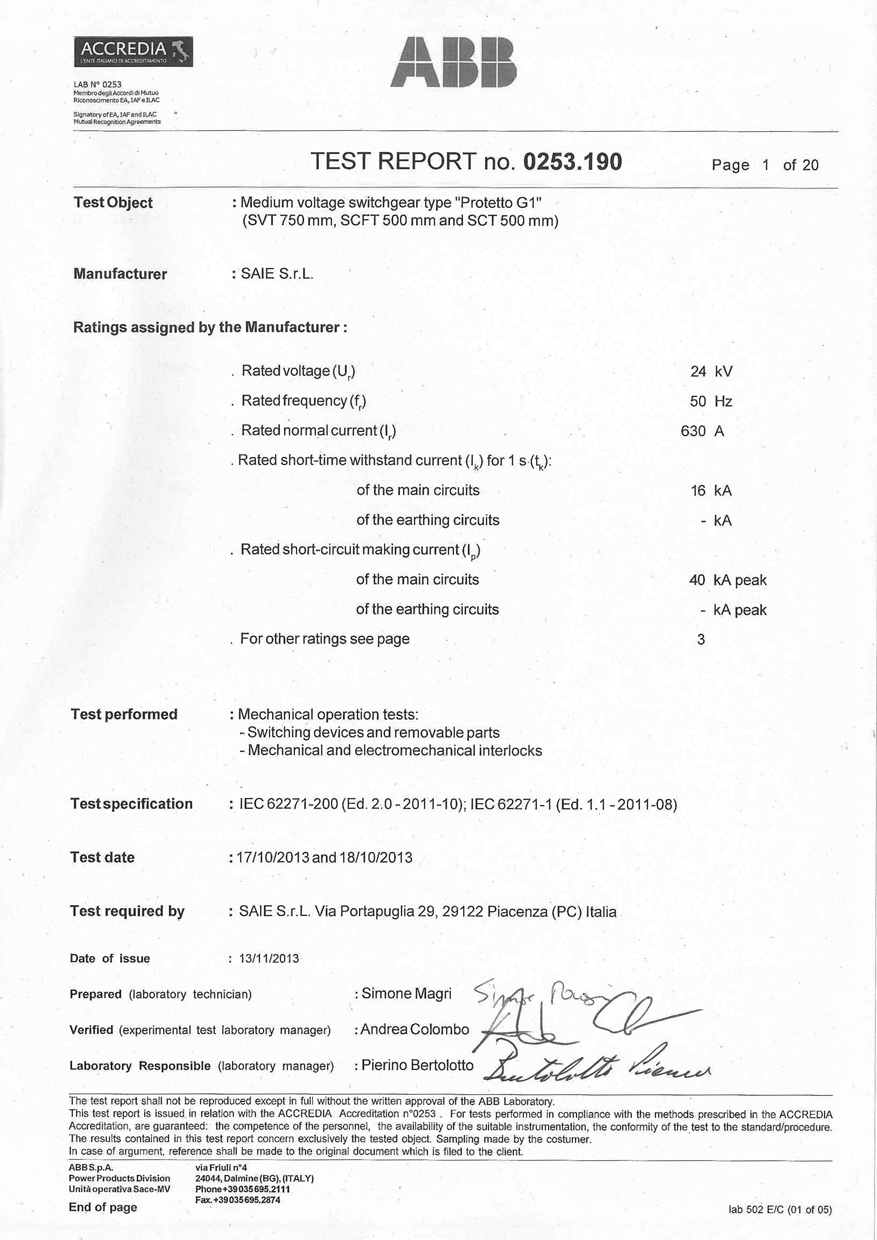

Mechanical Operation Tests

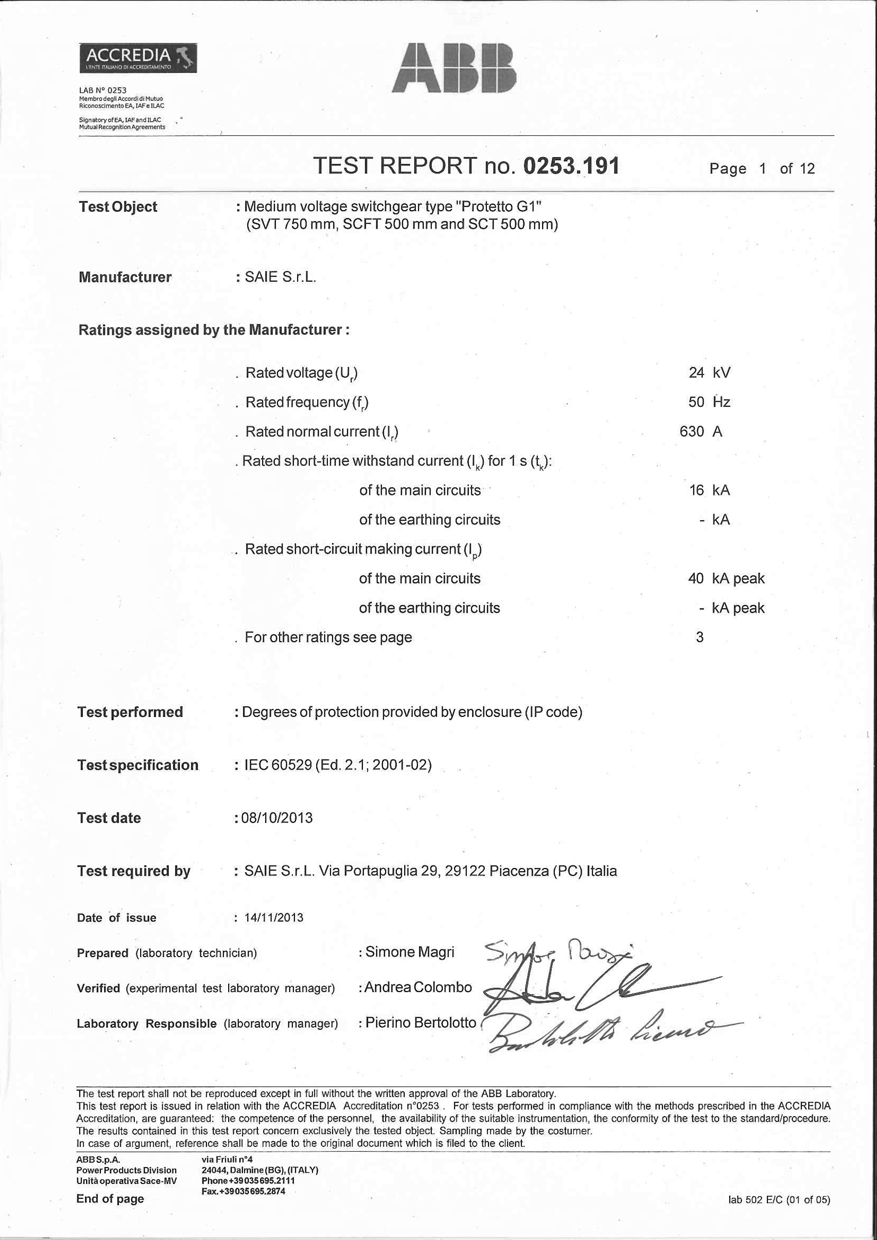

Cabinet Protection Degree
